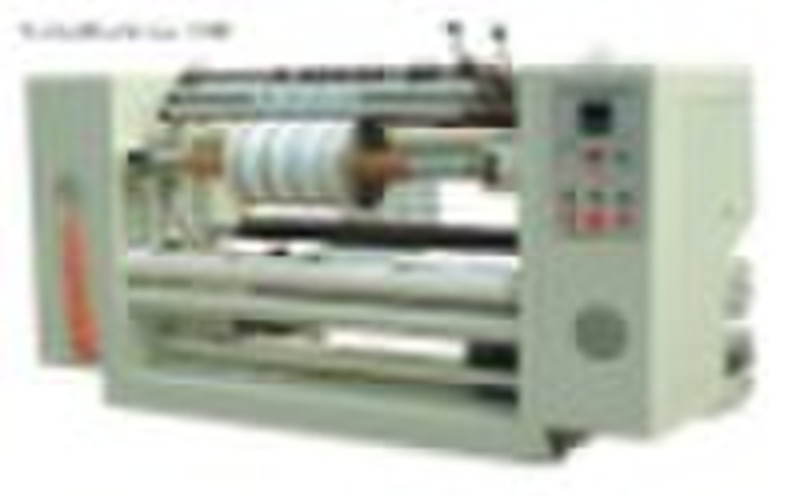

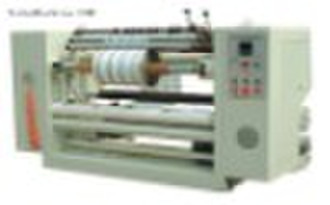

Auto Cutting Machine (Single Shaft)

Application Field This unit is idea for cutting various log rollmaterials such as PVC/OPP/PE/Masking tape/Double-side tape Plastic film...ect. Feature Centralized control panel:All operation controls.For this machine are centralizaed in a control panel.Silicon Lubricating system:The silicon lubricating system prevents the blade from sticking on adhensives and allow smooth cutting at times.Silicon liquid is recirculated.Maximum cutting stability:The blade is back pressure controlled through an air and hydraulic combination giving maxinmum cutting stability and fast blade retract after each cut,cutting pressure can be easily adjusted to suit various types of material.Cutting circular knife and main shaft power force adopted with A.C stepless adjusting motor available in any rotating direction.Cutting width setting up controlled by servo motor adjustable equipped with ball splines screw tosecure accurate size. Technical parameters Effective Width1.3M/1.6MMax-cuttinig diameter¢400mmMin-cutting diameter3mmPaper core¢1″ ¢3″Max-cutting speed35cuts/min
